Effective measure against global warming:
Taking a warm shower with Joulia.
How about more efficiency? delightful showering? a good conscience?
How about delightful showering, a good conscience and more eneryg efficiency?
Instead of letting valuable heat energy from shower water go to waste, the Joulia shower drain channel recovers this energy and provides a sustainable shower experience with the highest comfort level.
Efficiency
Up to 60% energy savings.
Amortisation
Short payback thanks to reduced energy costs and smaller heating system.
Potable water
Compliant with the stringent regulations by KIWA, SVGW, WRAS & DVGW.
Simplicity
Quick installation and thorough cleaning.
Compactness
Same height as shower drain channels without heat recovery.
Durability
Dependable functionality with no moving parts.
Design
Sleek design, integrated invisibly into the shower drain channel.
Awarded
for the brilliant idea, the high effiency and easy handling.
Trap
Integrated directly into the heat recovery module (50mm).
Safety
Double separation between fresh and waste water.
Flow rate
High flow rate of 0.8l/s, also ideal for rain shower heads.
no electricity
No need for electricity or complex control systems.
Before
The cold and warm water is directly connected to the mixing valve. The used warm shower water regrettably flows into the sewerage system.
The cold and warm water is directly connected to the mixing valve. The used warm shower water regrettably flows into the sewerage system.
Thanks to the rerouting of the cold water –
The Joulia-Inline shower drain channel is directly connected to the cold water pipes. Thanks to the integrated heat recovery, the heat of the used water…
– the heat energy comes back
preheats the fresh cold water. Thereby less warm water is needed in the mixing valve and a lot of CO2 and money can be saved.
preheats the fresh cold water. Thereby less warm water is needed in the mixing valve and a lot of CO2 and money can be saved.
Trap
Integrated directly into the heat recovery module (50mm).
Safety
Double separation between fresh and waste water.
Flow rate
High flow rate of 0.8l/s, also ideal for rain shower heads.
no electricity
No need for electricity or complex control systems.
Interested in operation diagrams, efficiency and pressure loss tables or drinking water certificates?
You can find all the answers in the "Technical Documentation"
Joulia-Inline
Thanks to ever stricter regulations on the building envelope and consequently thicker insulation, energy consumption for heating has been massively reduced over the past decades.
However, the energy requirement for hot water remains constant.
Due to the increased hygiene requirements and ever larger overhead showers, it can even be assumed that the energy consumption for hot water – and especially for showers – will increase even more
Nowadays a household needs the same amount of energy for hot water as for the entire space heating system.
Time to “plug” the last big hole in the insulation. Because it really makes no sense to produce a lot of hot water with valuable energy, which we dispose of after only two seconds of use.
Quelle: Jean-Marc Suter, Fachveranstaltung Trinkwasser aus Sicht der Gesundheit, Energieeffizienz u. Wirtschaftlichkeit, Nov. 2015, Bern
* Bei den Werten von Minergie ist der Anteil erneuerbare Energien nicht enthalten.
Joulia SA has been awarded with many different prizes, which encourage the idea of heat recovery with showers and also the production of high-quality products. We are very happy for having been awarded and want to say thank you to the jury and the audience.
- June 2023: Tech for Good Award – Coup de Coeur 2023 > Solution Joulia
- May 2022: 1st place in the Swissbau Startup Challenge 2021/2022 > Swissbau Startup Challenge
- Nov. 2021: Sylvester Cat Awart and Competition for sustainable innovations. > Catwalk, Climate Show Market
- March 2021: haustec.de readers’ choice, Product of the Year & Innovation Award 2021 > haustec.de readers choice
- Jan. 2021: Watt d’Or 2021: BFE, Bundesamt für Energie Schweiz > Watt d’Or Website BFE
- Dez. 2020: Solar Impulse Efficient Solutions Label for Joulia-Twinline: Solar Impulse > zum Beitrag
- Dez. 2018: Chinese Top Ecological Design Award: China Industrial Design Association > zum Beitrag
- Okt. 2018: Solar Impulse Efficient Solutions Label: Solar Impulse > zum Beitrag
- Nov. 2017: Swiss Excellence Award: Swiss Excellence Stiftung > zum Beitrag
- Okt. 2017: ELISA Energieeffizienzpreis der Forum Energie SA: Kategorie Produktlösungen > zum Beitrag
- Sept. 2017: Swiss winner of the Creative Business Cup: Global Finals im Nov. 2017 in Kopenhagen > zum Beitrag
- Juni 2017: Berner Unternehmenspreis NEUE ENERGIE 2017: Unternehmerinitiative NEUE ENERGIE BERN > zum Beitrag
- Mai 2017: Greentec Award 2017: Kategorie Bauen & Wohnen > zum Beitrag
- März 2017: Perpetuum Award 2017: Energieeffizienz Publikumspreis > zum Beitrag
- Okt. 2015: Design Preis Schweiz 2015/16: Kategorie Investment Goods > zum Beitrag
- Okt. 2014: Special Mention: German Design Award
- März 2013: AIT-Auszeichnung: 14. Innovationspreis für Architektur und Bauwesen
- Jan. 2013: Watt d’Or 2013: BFE, Bundesamt für Energie Schweiz > Watt d’Or Website BFE
- Nov. 2012: InnoPrix SoBa 2012: Baloise Bank SoBa > Website Innoprix Soba
- Sept. 2012: Innovationspreis Bereich Bad: Fachmagazin „Häuser modernisieren“ > Website Haus und Wohnen
- Sept. 2012: Cleantech Media Award, Kategorie Nachwuchs: Deutscher Umwelt- und Medienpreis > Beitrag Startupticker
- Sept. 2011: Förderpreis für Marketing: Bernische Stiftung für angewandte Kunst und Gestaltung > Website Berner Design Stiftung
The thermal imaging camera makes it clear: After the heat exchanger, the used shower water now flows cold into the sewer system.
Wenn ich selber einmal Bauherr bin, werde ich als Warm- und Langduscher eine Joulia-Duschrinne einbauen lassen.
Joulia ist ein hervorragendes Beispiel für "Cleantech made in Switzerland".
Joulia-Inline ist Designprodukt und technische Innovation in Einem.
Joulia hilft Energie zu sparen an einem Ort, an dem das Potential für viele nicht sichtbar ist.
Joulia steht für eine unmittelbar einleuchtende Idee, bei der man sich im Nachhinein nur wundern könne, dass zuvor noch niemand darauf gekommen sei.
Previous
Next
News
NOVEMBER 25, 2021
Door-opening event at Joulia.
On 25 November 2021, the first door-opener event took place at Joulia in Biel. Together with energie-cluster.ch and Swissframe AG, we dedicated an evening to the topic of heat recovery. Speakers from the Lucerne University of Applied Sciences and Arts, s3 GmbH, Franz Kaldewei GmbH + Co. KG and ACO AG gave presentations and were there afterwards at the Networking & Apéro to answer questions and present their latest products.
The presentations can be downloaded by clicking on the button below.

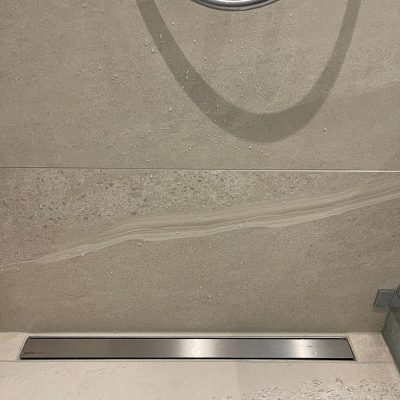

JOULIA-INLINE
wall-side assembly
JOULIA-INLINE
room-side assembly
JOULIA-INLINE
exclusive floor coverings
JOULIA-TWINLINE
room-side assembly
3-73-17-1.0

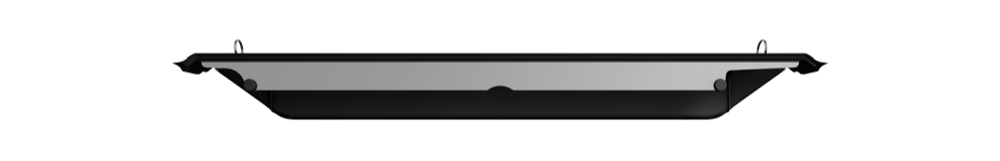

Shower drain JOULIA-INLINE with 3-pipe heat exchanger with upstand
Shower drain JOULIA-INLINE with integrated 3-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 73 cm, total length 83.7 cm, width 14.2 cm. incl. circumferential unsanded sealing flange with upstand 22cm, 9 cm installation height to top of channel cover, 7.2 cm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, with 50 mm sealing water height, 48 l/min., incl. 4 levelling feet, adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG/3DS/SAT (Zip-File)
5-73-17-1.0
Shower drain JOULIA-INLINE with 5-pipe heat exchanger with upstand
Shower drain JOULIA-INLINE with integrated 5-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 73 cm, total length 83.7 cm, width 14.2 cm. incl. circumferential unsanded sealing flange with upstand 22mm, 12 cm installation height to top of channel cover, 10.3 cm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, with 50 mm sealing water height, 48 l/min., incl. 4 levelling feet, adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG/3DS/SAT (Zip-File)
3-73-17-0.0
Shower drain JOULIA-INLINE with 3-pipe heat exchanger
Shower drain JOULIA-INLINE with integrated 3-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 73 cm, total length 83.7 cm, width 14.2 cm. incl. circumferential unsanded sealing flange, 9 cm installation height to top of channel cover, 7.2 cm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, with 50 mm sealing water height, 48 l/min., incl. 4 levelling feet, adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG / 3DS / SAT (Zip-File)
5-73-17-0.0
Shower drain JOULIA-INLINE with 5-pipe heat exchanger
Shower drain JOULIA-INLINE with integrated 5-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 73 cm, total length 83.7 cm, width 14.2 cm. incl. circumferential unsanded sealing flange, 12 cm installation height to top of channel cover, 10.3 cm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, with 50 mm sealing water height, 48 l/min., incl. 4 levelling feet, adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG / 3DS / SAT (Zip-File)
3-73-04-0.0
Shower channel JOULIA-INLINE with 3-pipe heat exchanger for exclusive floor coverings
Shower drain JOULIA-INLINE with integrated 3-pipe heat exchanger, for exclusive floor coverings. Length visible part 73 cm, total length 87.3 cm incl. circumferential unsanded sealing flange. Drain body made of stainless steel V2A, pickled & passivated. Width 198 mm. 89 mm installation height to top of channel cover, 85 mm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet. incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, incl. 50 mm sealing water height, 48 l/min. incl. 4 levelling feet, adjustment range +40 mm, incl. 2 foot holding plates, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG / 3DS / SAT (Zip-File)
5-73-04-0.0
Shower channel JOULIA-INLINE with 5-pipe heat exchanger for exclusive floor coverings
Shower drain JOULIA-INLINE with integrated 5-pipe heat exchanger, for exclusive floor coverings. Length visible part 73 cm, total length 87.3 cm incl. circumferential unsanded sealing flange. Drain body made of stainless steel V2A, pickled & passivated. Width 198 mm. 12 cm installation height to top of channel cover, 10.3 cm to top of sealing flange. Waste water connection DN50 centrally arranged, horizontal outlet. incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. siphon hood made of stainless steel V2A, incl. 50 mm sealing water height, 48 l/min. incl. 4 levelling feet, adjustment range +40 mm, incl. 2 foot holding plates, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: Drain channel cover
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG / 3DS / SAT (Zip-File)
2-0-0-1.0
brushed
2-0-0-2.0
satin finish
2-0-0-3.0
polished
2-0-0-4.0
integrated hair sieve
10-92-17-0.0
Shower drain JOULIA-TWINLINE 92cm with 10-pipe heat exchanger
Shower drain JOULIA-TWINLINE with integrated 10-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 92 cm, total length 99 cm / 101 cm incl. circumferential unsanded sealing flange, width 21.7 cm, 12 cm installation height to top of channel cover, 10.2 cm to top of sealing flange. Waste water spigot DN50 positioned centrally, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. distributor made of stainless steel V2A, with 50 mm barrier water height, 48 l/min., incl. 4 levelling feet and 2 foot retaining plates. Adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: none.
Download 2d-Files: Massskizze PDF/DWG (Zip-File)
Download 3d-Files: DWG/3DS/SAT (Zip-File)
10-72-17-0.0
Shower drain JOULIA-TWINLINE 72cm with 10-pipe heat exchanger
Shower drain JOULIA-TWINLINE with integrated 10-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 72 cm, total length 82 cm incl. circumferential unsanded sealing flange, width 21.7 cm, 12 cm installation height to top of channel cover, 10.2 cm to top of sealing flange. Waste water spigot DN50 positioned centrally, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. distributor made of stainless steel V2A, with 50 mm barrier water height, 48 l/min., incl. 4 levelling feet and 2 foot retaining plates. Adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: none.
Download 2d-Files: on request
Download 3d-Files: on request
6-92-17-0.0
Shower drain JOULIA-TWINLINE 92cm with 6-pipe heat exchanger
Shower drain JOULIA-TWINLINE with integrated 6-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 92 cm, total length 99 cm / 101 cm incl. circumferential unsanded sealing flange, width 21.7 cm, 9 cm installation height to top of channel cover, 7.2 cm to top of sealing flange. Waste water spigot DN50 positioned centrally, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. distributor made of stainless steel V2A, with 50 mm barrier water height, 48 l/min., incl. 4 levelling feet and 2 foot retaining plates. Adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: none.
Download 2d-Files: on request
Download 3d-Files: on request
6-72-17-0.0
Shower drain JOULIA-TWINLINE 72cm with 6-pipe heat exchanger
Shower drain JOULIA-TWINLINE with integrated 6-pipe heat exchanger, drain body made of stainless steel V2A, pickled & passivated. Length visible part 72 cm, total length 82 cm incl. circumferential unsanded sealing flange, width 21.7 cm, 9 cm installation height to top of channel cover, 7.2 cm to top of sealing flange. Waste water spigot DN50 positioned centrally, horizontal outlet, incl. cold water IN/OUT connections 1/2″ internal thread (pre-mounted back-flow preventor), incl. distributor made of stainless steel V2A, with 50 mm barrier water height, 48 l/min., incl. 4 levelling feet and 2 foot retaining plates. Adjustment range +40 mm, incl. acoustic leakage detector (buzzer), incl. construction site protection. Construction according to [EN1253]. Drinking water certified according to KIWA SVGW, WRAS & DVGW.
_
Necessary accessories: none.
Download 2d-Files: on request
Download 3d-Files: on request
New: Shower Surfaces with Joulias heat exchangers.
The Joulia-Inline and Joulia-Twinline heat exchangers can be combined with shower areas made of solid surface material. These are made to measure and are also available with optional upstands.
The company Firma Meyer AG aus Ennetbürgen/Switzerland is happy to make you an offer for the shower surfaces in Varicor with a built in Joulia.
Contact them via mail: info@meyer-systeme.ch.
Below the cover…
hides the “distributor”
and the 10 copper heat exchanger tubes.
We are looking forward to your visit in Biel.
«Joulia is a wonderful apparatus for effecting the conversion of waste heat into a substantial CO2 reduction.»
Through the strategic partnership with our copper tube supplier, the strengths of both partners can be combined even better. In addition to technical know-how, Wieland also contributes operational expertise to support Joulia. The Joulia team sees the intensified cooperation with Wieland as an opportunity to further optimize and industrialize technology and production in order to make the high-quality and sustainable solution available to even more customers.
